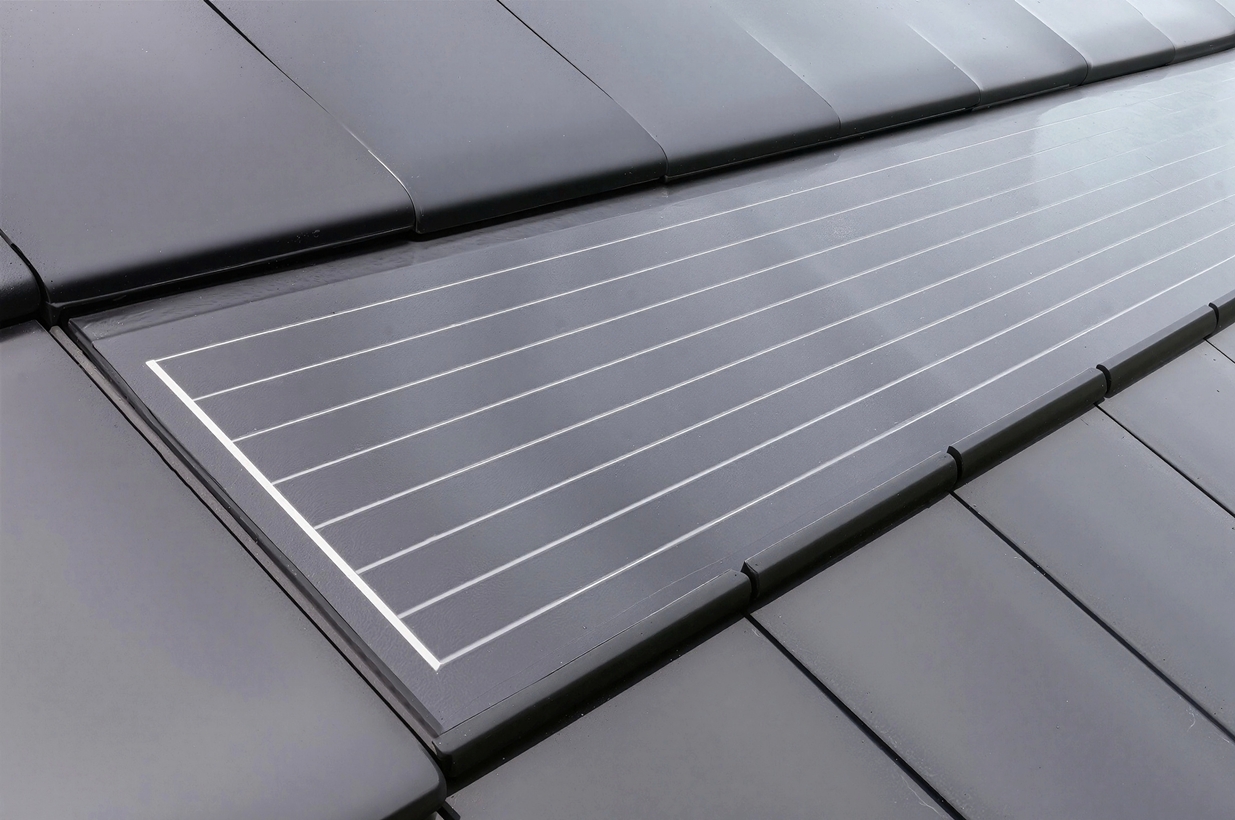

The G10 S PV module fits the G10 roof tile and has a covering width corresponding to six roof tiles (G10 S PV) and a variable covering length between 38.4 and 40.4 cm. The modules are equipped with suspension hooks, with which they are hung on the roof battens and screwed there, and they also have locks on both side ends that correspond to the locks of the G10 tile. With a required roof area of approximately 5.6 m² per 1 kWp of output, these two models are also among the most efficient solar tile systems on the market. The longer covering length leads to a slightly higher proportion of the frame, which is used for the aesthetic notch on the lower edge of the tile. This notch simulates the joint between the tiles and thus underlines the aesthetics of the roof tiles.
Technical data:
-
Module size: 1500 × 488 × 14mm
-
Area power: 180 Wp/m²
-
Power of one module: 104 Wp
-
Number of modules per 1 m²: 1.4 pcs
